EXTEND YOUR SWIMMING SEASON
- Knock the chill off your above ground pool in the beginning and end of the swim season

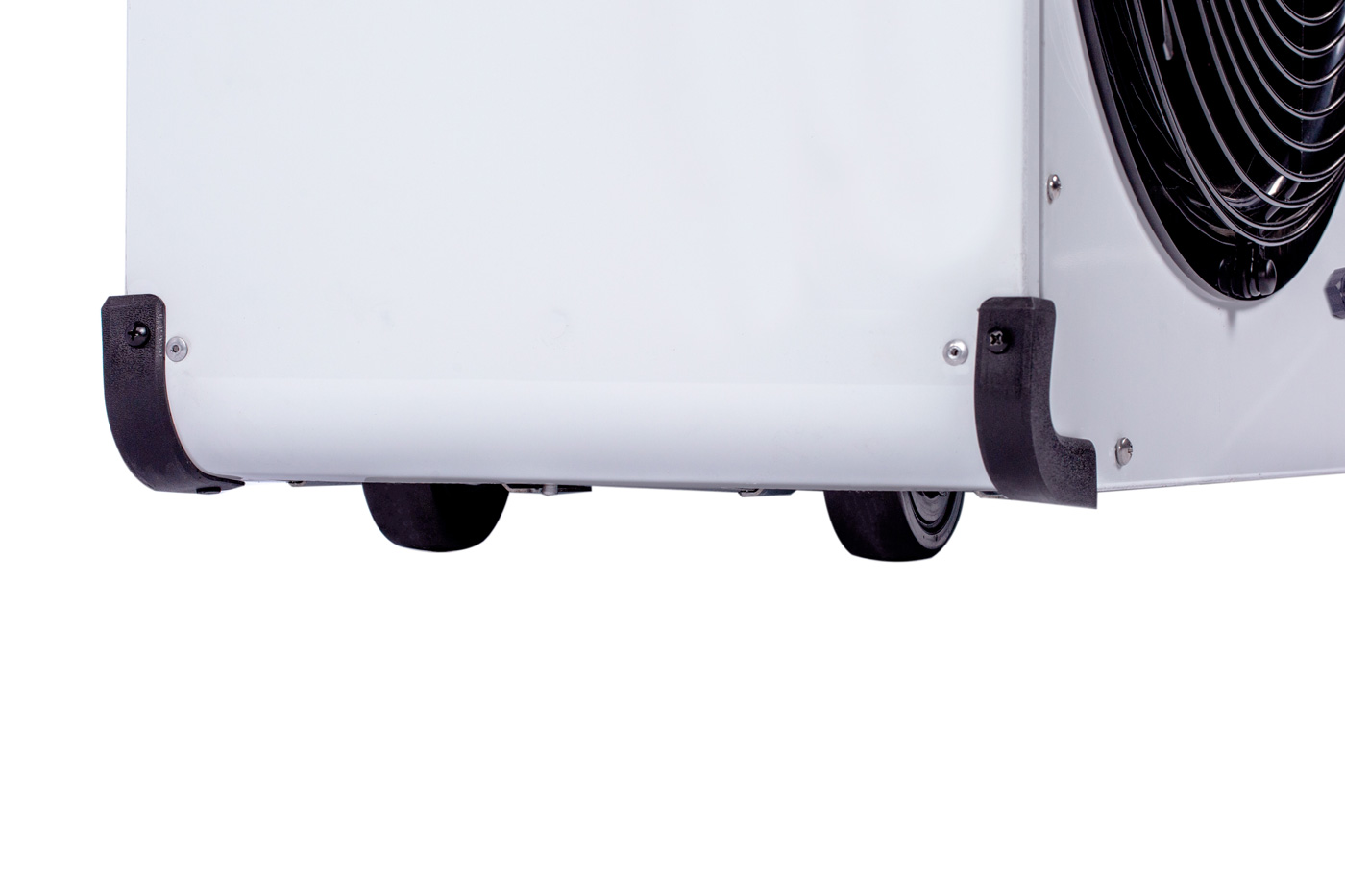

- Wheels and handhold for easy placement and storage during winter
- Impact resistant, rust and fade proof cabinet
- DIY – simple plumbing configuration
- Microprocessor controlled defrost cycle allows operation down to mid to low 40s °F
- Patented high performance ThermoLink® titanium heat exchanger maximizes flow efficiency
- Heat for a fraction of the cost of gas heaters
Now you can control your heat pump right through your smartphone. Adjust your temperature setting in the PoolSync app.
*Additional purchase of PoolSync WiFi Controller required
AHRI’s globally recognized and industry respected heat pump pool heaters certification program provides outstanding value to equipment and component manufacturers, customers, and government regulators. AHRI Certified® products are subject to rigorous and continuous testing by a third-party laboratory under contract to AHRI. Only products certified by AHRI are listed in AHRI’s Directory of Certified Product Performance, a real-time database at web page. More information can be found online on the heat pump pool heaters Certification Program (web page), and the heat pump pool heaters contractors (web page).
California residents – Click here for Proposition 65 warning
Brochures & Manuals
Specs 60Hz
| 60Hz | T30 |
|---|---|
| BTUs (water temp/ambient air/relative humidity) |
|
| 80/80/80 | 23,000 |
| 80/80/63 | 22,000 |
| 80/50/63 | 12,000 |
| COPs Coefficient of Performance (water temp/ambient air/relative humidity) |
|
| 80/80/80 | 5.8 |
| 80/80/63 | 5.6 |
| 80/50/63 | 3.3 |
| Refrigerant | |
| R410A | |
| Heat Exchanger | |
| ThermoLink | |
| Electrical | |
| kW Input | 1.2 |
| Voltage/Hz/Phase | 110-120/60/1 |
| Minimum Circuit Ampacity | 15 |
| Maximum Fuse Size | 25 |
| * Over Temperature Alarm Kit available; part number STK0221 for single phase | |
| Water Flow | |
| Minimum/Maximum (gpm) | 10/70 |
| * A Heater Bypass Kit is required when flow rates exceed the maximum: part number STK0135. | |
| Physical | |
| Weight (lbs) | 120 |
| Length x Width x Height (in) | 42″ x 16″x 30″ |
| Shipping | |
| Weight (lbs) | 150 |
| Length x Width x Height (in) | 45″ x 18″x 32″ |
| Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity Specifications subject to change |
|
