4.33 (3 reviews)

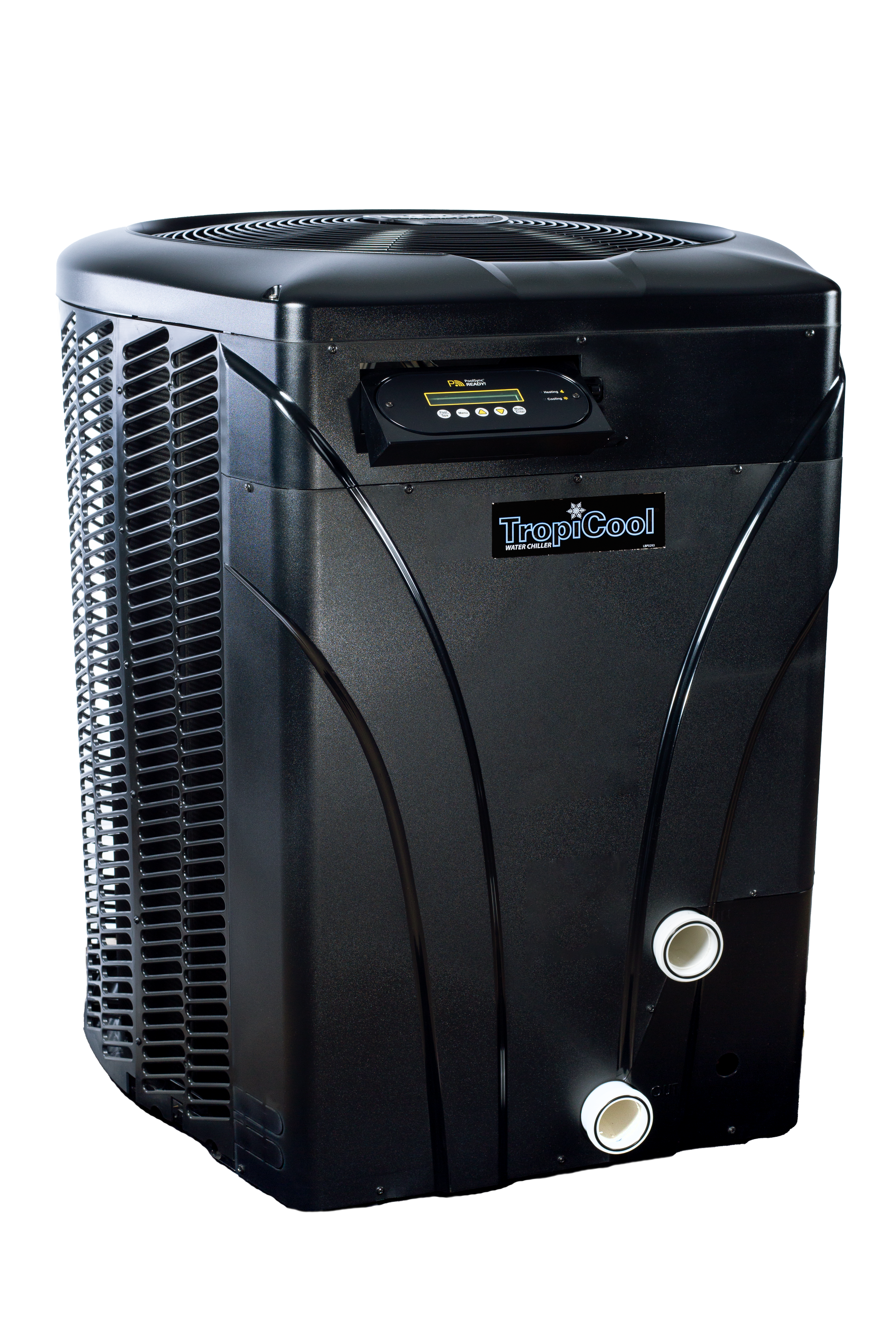

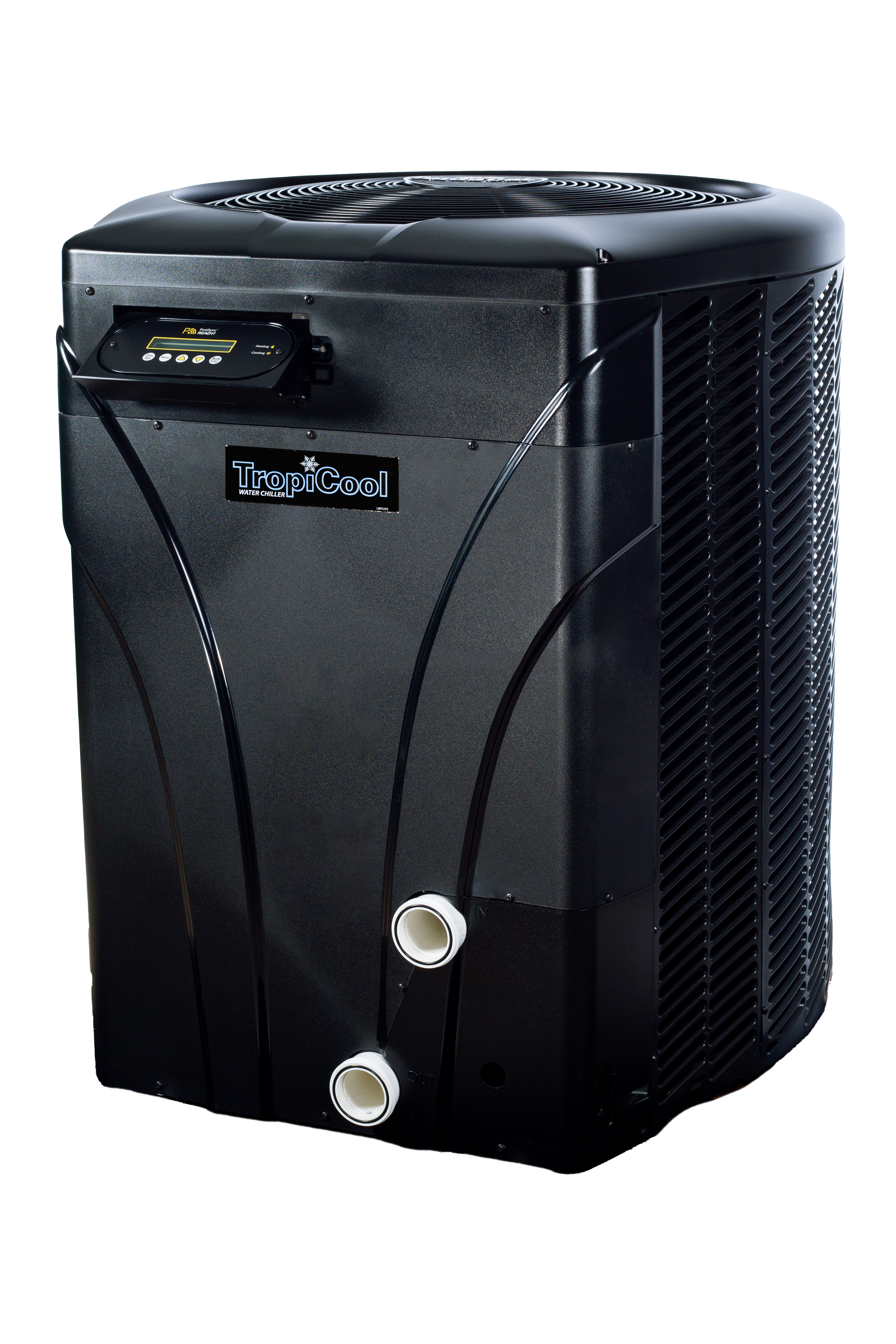

The TropiCool® Water Chiller is designed to lower the temperature of your swimming pool to a refreshing and enjoyable experience throughout the summer. A heat pump gives you consistent performance, while evaporative cooling systems struggle to keep up in humid climates.

  • Set your desired temperature to maintain
  • Helps conserve water, does not work on evaporation
  • Consistent performance regardless of humidity
  • Titanium heat exchanger impervious to harsh water chemistry
  • New SMART control panel with 24 character full-text display provides easy-to-read menu options and unit status

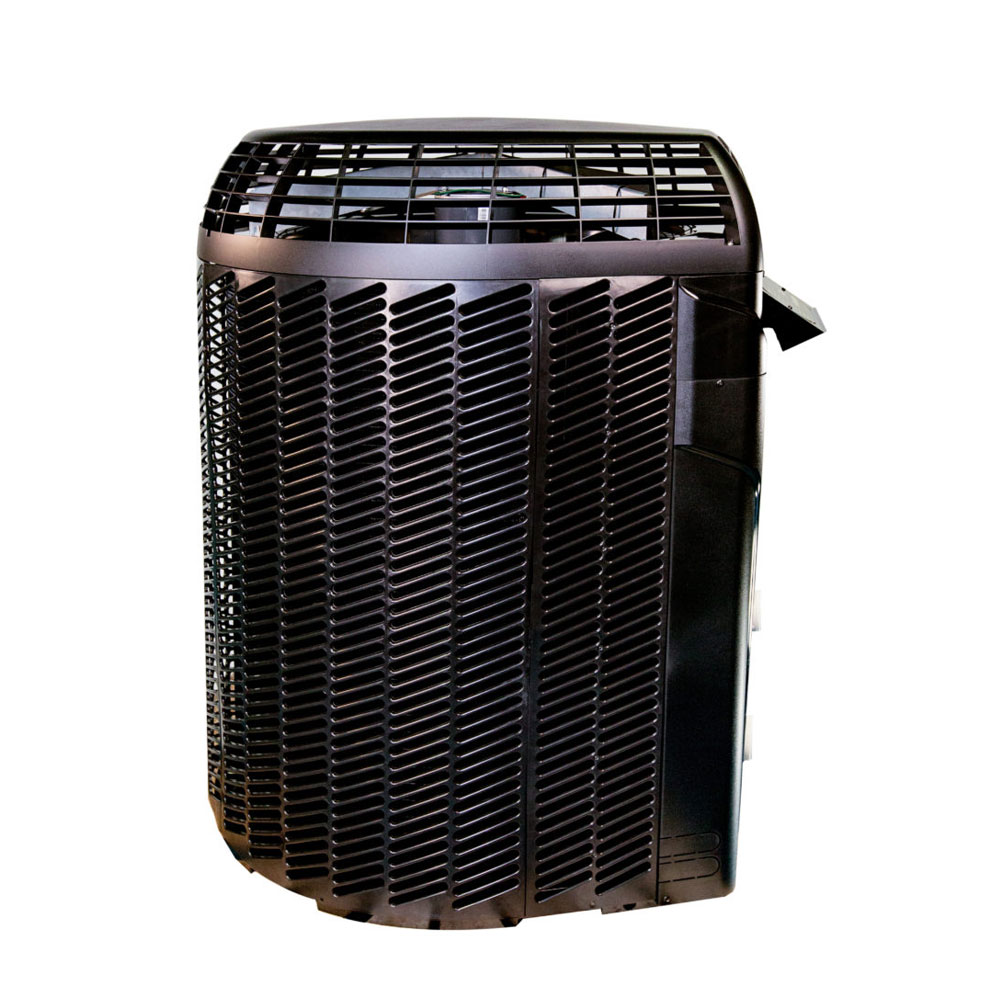

  • TC1500 features the world’s ONLY integrated AquaTop which ensures optimal air flow for maximum efficiency and prevents debris from getting inside the heat pump
  • Ability to chill as low as 40° F for cold plunge pools
    • TC500 for cold plunge up to 2,000 gallons
    • TC1000 for cold plunge up to 3,000 gallons
    • TC1500 for cold plunge up to 4,000 gallons
      Cold plunge pool sizes refer to residential use only. The bather load of a commercial plunge pool will require a larger unit.
PoolSync Ready

Now you can control your heat pump right through your smartphone. Adjust your temperature setting in the PoolSync app.
*Additional purchase of PoolSync WiFi Controller required

Contact AquaCal for your Sizing Needs
CE logo   ETL logo

California residents – Click here for Proposition 65 warning


Specs 60Hz

60Hz TC500 TC1000 TC1500
Voltage/Hz/Phase 208-230/60/1 208-230/60/1 208-230/60/1
Minimum Circuit Ampacity 31.4 38.2 42.1
Maximum Fuse Size 50 60 60
Water Flow Min/Max (gpm) 20/45 30/70 30/70
Physical Dimensions (in) 34″ x 34″ x 28″ 34″ x 34″ x 39″ 34″ x 34″ x 44″
Shipping Weight (lbs) 241 295 355

Specs 50Hz

50 Hz TC500 TC1000 TC1500
Voltage/Hz/Phase 200-240/50/1 200-240/50/1 200-240/50/1
Minimum Circuit Ampacity 20.3 38.6 38.9
Maximum Fuse Size 35 60 60
Water Flow
Minimum/Maximum (m3/h) 4.5/10.2 6.8/15.9 6.8/15.9
Minimum/Maximum (gpm) 20/45 30/70 30/70
Length x Width x Height (cm) 87 x 87 x 72 87 x 87 x100 87 x 87 x 112
Length x Width x Height (in) 34″ x 34″ x 28″ 34″ x 34″ x 39″ 34″ x 34″ x 44″
Weight (kg) 110 134 161
Weight (lb) 241 295 355

Brochures & Manuals


3 reviews for TropiCool®

  1. Larry

    Hi my pool out back it’s a in ground pool I was told it’s roughly 15k gallons think it’s 21 ft long 10 wide and 6 ft deep and am in casa Grande az what heat/cooling unit would you recommend?

    • AquaCal Customer Service

      Hello Larry,

      Before we can recommend a heater for your pool, we need to the temperature at which you wish to keep your pool. If you can spare 5 minutes to call our Tech Support department at 727-456-7411, we can help you select the best model for your pool.

  2. Barrett

    What does it cost and what is installation cost?

    • AquaCal Customer Service

      Hello Barrett,

      Local Dealers are best contacts to see what the total cost of installation will be on a heat pump. They will know the local codes that must be applied for installation & also will be competing with other dealers to get your business.
      Please pull up the “WHERE TO BUY” tab on our home page, type in you zip code & local dealers will pop up for you.

  3. Khaled al sabah

    I would like to ask if i have a residential swimming pool out door with a size of 12m * 6m which water chiller suits me and how much does it cost ?

    • AquaCal AutoPilot, Inc.

      Hello Khaled,

      Thank you for your question and review! In order for us to help you we need a little bit more information from you.
      Before we could recommend a model, we would need to know:
      • Size of the pool
      • Indoor or outdoor pool
      • Pool location for weather conditions
      • Starting pool temperature
      • Desired temperature drop
      • How quickly do you need to achieve that temperature
