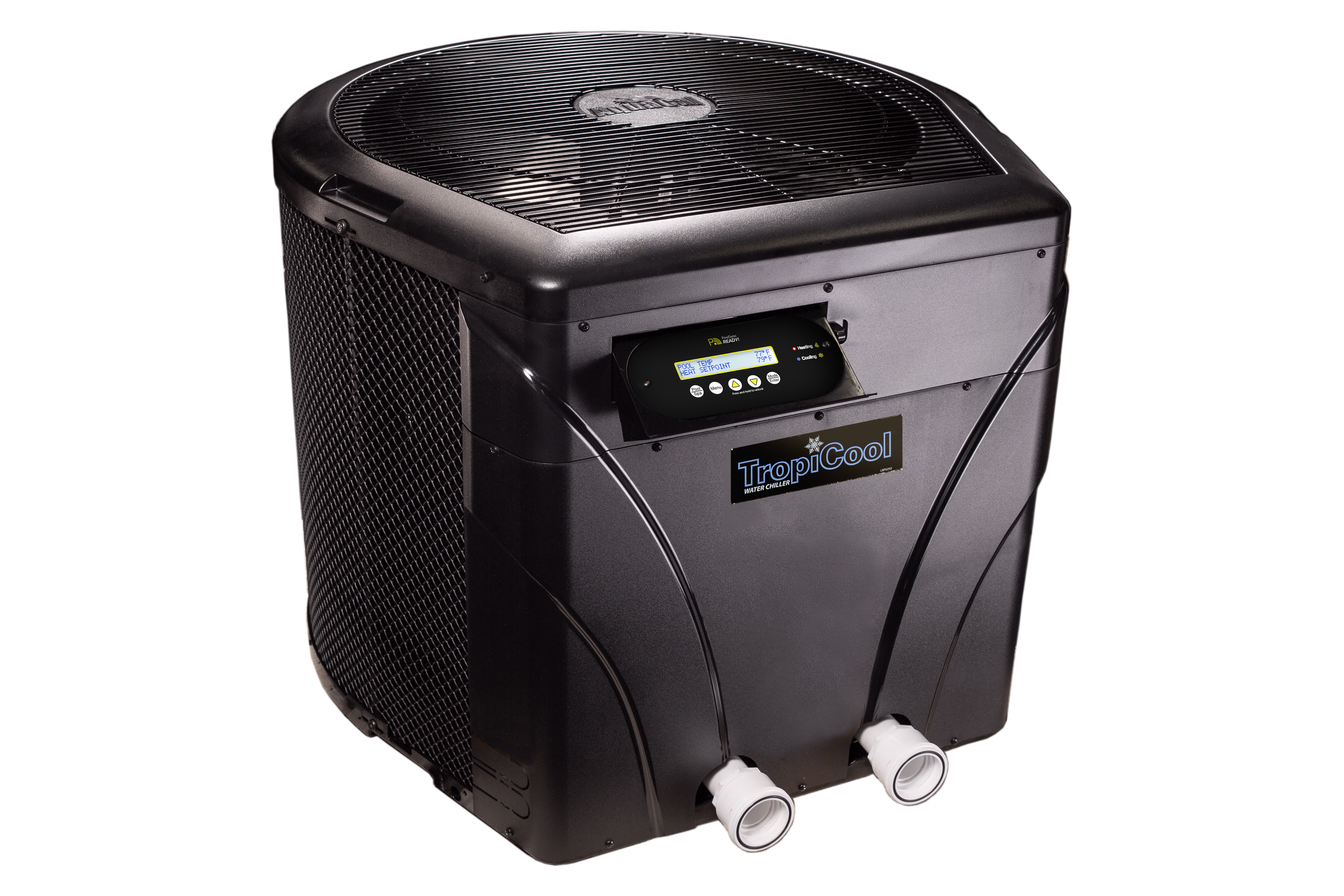

The TropiCool® Water Chiller is designed to lower the temperature of your swimming pool to a refreshing and enjoyable experience throughout the summer. A heat pump gives you consistent performance, while evaporative cooling systems struggle to keep up in humid climates.

  • Set your desired temperature to maintain
  • Helps conserve water, does not work on evaporation
  • Consistent performance regardless of humidity
  • Titanium heat exchanger impervious to harsh water chemistry
  • New SMART control panel with 24 character full-text display provides easy-to-read menu options and unit status
  • Ability to chill as low as 40° F for cold plunge pools
    • TC1000 for cold plunge up to 3,000 gallons
      Cold plunge pool size refers to residential use only. The bather load of a commercial plunge pool will require a larger unit.
Contact AquaCal for your Sizing Needs
CSA logo   CE logo   ETL logo

California residents – Click here for Proposition 65 warning

Category:

Specs

60Hz TC1000
Voltage/Hz/Phase 208-230/60/1
Minimum Circuit Ampacity 38.2
Maximum Fuse Size 60
Water Flow Min/Max (gpm) 30/70
Physical Dimensions (in) 34″ x 34″ x 39″
Shipping Weight (lbs) 309

Brochures & Manuals

Specs 60Hz

60Hz TC500 TC1000 TC1500
Voltage/Hz/Phase 208-230/60/1 208-230/60/1 208-230/60/1
Minimum Circuit Ampacity 31.4 38.2 42.1
Maximum Fuse Size 50 60 60
Water Flow Min/Max (gpm) 20/45 30/70 30/70
Physical Dimensions (in) 34″ x 34″ x 28″ 34″ x 34″ x 39″ 34″ x 34″ x 44″
Shipping Weight (lbs) 240 309 390

Specs 50Hz

50 Hz TC500 TC1000 TC1500
Electrical
Voltage/Hz/Phase 200-240/50/1 200-240/50/1 200-240/50/1
Minimum Circuit Ampacity 20.3 38.6 38.9
Maximum Fuse Size 35 60 60
Water Flow
Minimum/Maximum (m3/h) 4.5/10.2 6.8/15.9 6.8/15.9
Minimum/Maximum (gpm) 20/45 30/70 30/70
Physical
Length x Width x Height (cm) 87 x 87 x 72 87 x 87 x100 87 x 87 x 112
Length x Width x Height (in) 34″ x 34″ x 28″ 34″ x 34″ x 39″ 34″ x 34″ x 44″
Shipping
Weight (kg) 109 140 177
Weight (lb) 240 309 390

Warranty
