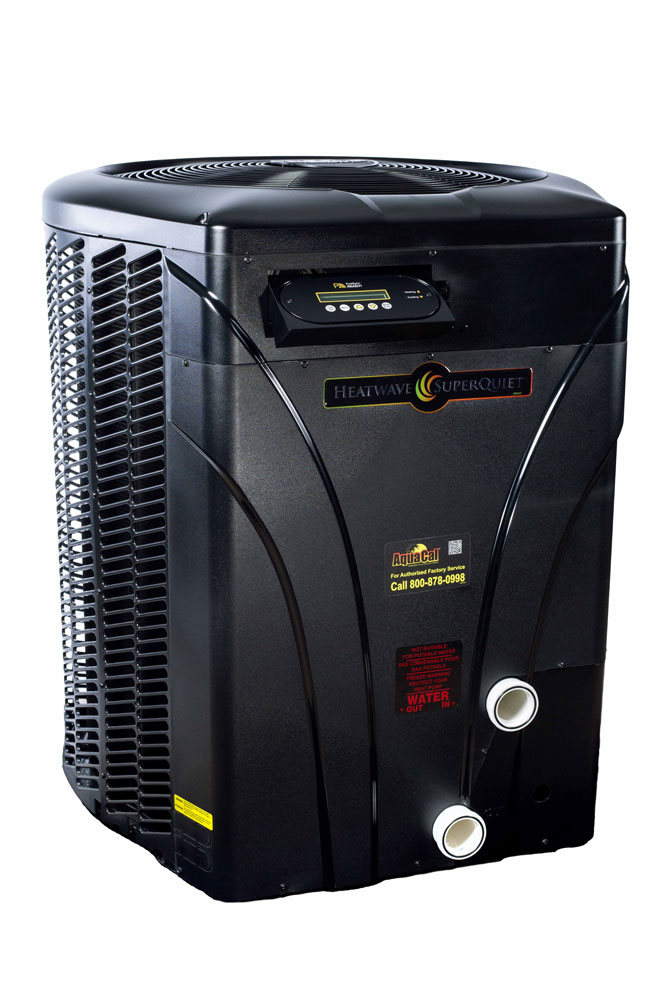

HeatWave SuperQuiet® is the TOP selling and most sought after heat pump on the market. With a pure Titanium ThermoLink® Heat Exchanger at its core – the HeatWave SuperQuiet® Series offers you optimum return on your investment.

Making the right choice just got a whole lot easier. All of our HeatWave SuperQuiet® Heat Pumps are fully tested and certified by AHRI. Some of the HeatWave SuperQuiet® models are also ICEBREAKERS®, which heat and cool the pool. The ICEBREAKER® units extend the swimming season longer than any other heat pump by continuing to operate in low temperatures.

Rated in accordance with AHRI standard 1160.
PoolSync Ready

Now you can control your heat pump right through your smartphone. Change the mode to heat, cool or autotemp (when applicable), and set your temperature through the PoolSync app.
*Additional purchase of PoolSync WiFi Controller required

Contact AquaCal for your Sizing Needs
ahri_cert_product  CE logo   ETL logo

AHRI’s globally recognized and industry respected heat pump pool heaters certification program provides outstanding value to equipment and component manufacturers, customers, and government regulators. AHRI Certified® products are subject to rigorous and continuous testing by a third-party laboratory under contract to AHRI. Only products certified by AHRI are listed in AHRI’s Directory of Certified Product Performance, a real-time database at web page. More information can be found online on the heat pump pool heaters Certification Program (web page), and the heat pump pool heaters contractors (web page).

California residents – Click here for Proposition 65 warning

Features

The only heat pump that allows you to maximize the potential savings of a variable speed pump is an AquaCal®, which utilizes our patented ThermoLink® Heat Exchanger technology with its unique flow characteristics.

• Patented hydraulic design adds only 2 PSI at 45 gpm, increasing compatibility with two-speed & variable speed pumps
• Saves money when using a variable speed pump by reducing the RPM needed to achieve the same flow rate
• Save money in a single speed pump application by reducing the run time needed to achieve the same turnover rate of the pool

Corrosion Proof Cabinet

• Louvered side panels protect evaporator coil while ensuring efficient air flow
• Rust and fade proof
• Impact resistant
• Built-in drain pan provides condensate management

AquaTop

• Unique Air Flow Vectoring Top ensures optimal air flow for maximum efficiency
• World’s ONLY integrated top that protects internal components and prevents debris like leaves and other vegetation from getting inside the heat pump, rotting and becoming acidic
• Protection provided by the AquaTop allows for an extended 10 year warranty on the evaporator coil

Microprocessor Controlled  with Digital Display

• Weather protected control with full text display provides easy-to-read menu options and unit status
• Ability to connect to most external controllers for heating and cooling mode
• Hybrid functionality can initiate a gas heater when an extra boost of heat is needed

Additional Features

PoolSync® Ready
Adjust your heat mode and temperature setting right through your phone in the PoolSync app.
*Additional purchase of PoolSync WiFi Controller required

Brochures & Manuals

Specs 60Hz

60 Hz SQ125 SQ145 SQ225 SQ120R SQ166R
BTUs
(water temp/ambient air/relative humidity)
80/80/80 101,000 121,000 143,000 110,000 126,000
80/80/63 95,000 115,000 134,000 103,000 120,000
80/50/63 62,000 75,000 90,000 72,000 82,000
Coefficient of Performance
(water temp/ambient air/relative humidity)
80/80/80 6.5 7.1 6.5 5.5 5.6
80/80/63 6.1 6.8 6.1 5.3 5.3
80/50/63 4.0 4.2 4.0 4.0 4.0
Refrigerant R410A R410A R410A R410A R410A
Electrical
Heat or Heat & Cool H H H H & C H & C
kW Input 4.6 5.1 6.4 5.9 6.6
Voltage/Hz/Phase


A – 208-230/60/1
B – 200-230/60/3
E – 380-415/60/3
G – 460/60/3

A A, B & G A, B, E & G A & B A, B, E & G
Maximum Fuse Size A – 60 A – 60
B – 50
G – 20
A – 60
B – 50
E – 30
G – 25
A – 60
B – 50
A – 60
B – 50
E – 30
G – 25
Minimum Circuit Ampacity
Over Temperature Alarm Kit available: part number STK0221 for single phase, STK0222 for three phases. Strongly recommended for all spa applications.
A – 40.5 A – 42.1
B – 31.0
G – 14.2
A – 42.1
B – 33.3
E – 18.4
G – 16.2
A – 38.5
B – 31.0
A – 42.1
B – 33.3
E – 18.4
G – 16.2
Water Flow
*A Heater Bypass Kit is required when flow rates exceed the maximum
Minimum/Maximum (gpm) 30/70 30/70 30/70 30/70 30/70
Physical
Weight (lbs) 258 305 315 273 310

Length x Width x Height (in)

34″ x 34″ x 44″ 34″ x 34″ x 44″ 34″ x 34″ x 44″ 34″ x 34″ x 44″ 34″ x 34″ x 44″
Shipping
Weight (lbs) 298 345 355 313 350
Length x Width x Height (in) 37″ x 36″ x 51″ 37″ x 36″ x 51″ 37″ x 36″ x 51″ 37″ x 36″ x 51″ 37″ x 36″ x 51″
Rated in accordance with AHRI standard 1160 water temp/ambient air/relative humidity

Specs 50Hz

50 Hz SQ225 SQ166R
Efficiency
KW Output 35.2 31.7
BTU Output 120,000 108,000
Coefficient of Performance (C.O.P) 6.5 5.6
KW Input 5.4 5.7
Electrical
Heat or Heat & Cool H H & C
Voltage/Hz/Phase
H – 200-240/50/1
D – 380-420/50/3
D D
Maximum Fuse Size D – 25 D – 25
Minimum Circuit Ampacity D – 16.2 D – 16.2
Refrigerant R410A R410A
Water Flow
A Heater Bypass Kit is required when flow rates exceed the maximum
Minimum/Maximum (m3/h) 6.8/15.9 6.8/15.9
Minimum/Maximum (gpm) 30/70 30/70
Physical
Weight (kg) 143 141
Weight (lb) 315 310
Length x Width x Height (cm) 87 x 87 x 112 87 x 87 x 112
Length x Width x Height (in) 34″ x 34″ x 44″ 34″ x 34″ x 44″
Shipping
Weight (kg) 162 159
Weight (lb) 355 350
Length x Width x Height (cm) 94 x 92 x 130 94 x 92 x 130
Length x Width x Height (in) 37″ x 36″ x 51″ 37″ x 36″ x 51″

Warranty

9 reviews for HeatWave SuperQuiet®

  1. Jose Gutierrez

    I have had a SQ155AHDSBTM since 2014, and it os still working great after almost 7 years, it warms up great, my only issue was a control (screen) failure but was covered under warranty without any issues. This is the best brand in the market, totally recommended. When I ever need another heat pump, I would only go with AquaCal.

  2. Ray Lang

    3rd year on my Aquacal heat pump and I love it. Very quiet, heats fast 22,000 gallon pool. 1 degree per hour. Didn’t have any issue on it. This is a great product for us!

  3. Terry Barnett

    Update to previous email. The company took care of all issues with the heater AND IT HAS BEEN WORKING GREAT FOR THE LAST 2 YEARS.

    UPDATE / The company has taken care of all issues and the heater has been working great for the last 2 years. It heats up quickly and is quiet.I did purchase the extended warranty because of the initial problems we had. After the initial problems it has been trouble free.

  4. Bobby

    just had a 36×48 unground pool installed. The heater has been on since thursday and the temp is set for 86. But the temp on display has not gotten above 76 degrees. not sure what to do.

    • AquaCal Customer Service

      Hi Bobby,

      We recommend you call us at 727-823-5642 to gather some more information; i.e. size of the pool (gallons), size of the heat pump, where the pool is locate (city, state, country), etc.

  5. Kim

    Have the same issue as other people. Display shows code ota, apparently it’s an over temperature alarm. Not sure what is going on because the water is barely 70 degrees. Can’t get ahold of anybody because it’s the weekend. Some people work during the week. 😕

    • AquaCal Customer Service

      Hi Kim,

      Thank you for contacting AquaCal AutoPilot, we are working since Saturday to resolved your issues! We will contact you today to schedule an appointment!

  6. Jason

    Product worked well for a little then had to replace screen module… now it registers water at 103 but it’s only 65 so it won’t turn on to heat.

    • AquaCal Customer Service

      Hi Jason,

      You may have a water temperature sensor issue. Please call us at 727-823-5642 and we will be happy to assist you.

  7. Terry Barnett

    Bought a SQ120 IN 2014. Started making a loud noise after about 6 months. Took several repair trips to fix. Now its takes 12+ hours to heat 5 degrees.Very disappointed in this heater. Live in FL. where it is warm….

    • Maria Martinez

      Hello Terry,

      Thanks for taking the time to reach out and share your experience with our team. We’d love to chat with you further to gather more information from you and work towards a resolution. We’ll be reaching out via email, so keep your eyes peeled on your inbox.

  8. Jessica Gutierrez

    This heat pump works great!! It heats about one (1) degree per hour, it does consumes about 7.5 Kwh in case you’re wondering, I wish it would be a little more energy efficient, but all the other features and the way it heats up the pool is great. I have a 12,000 gal pool and it heats it up to 86 degrees in about 3-4 hours

  9. fpalazo

    This thing is awesome it heats the spa really quick and hardly makes any noise at all, If I did not feel the water the only way to tell if it is running is to walk over and see if the fan is spinning. I would defiantly purchase again!!
