Before building a Great Big Bopper® heat pump for any application, this Build Spec questionnaire must be completed.
California residents – Click here for Proposition 65 warning
Features

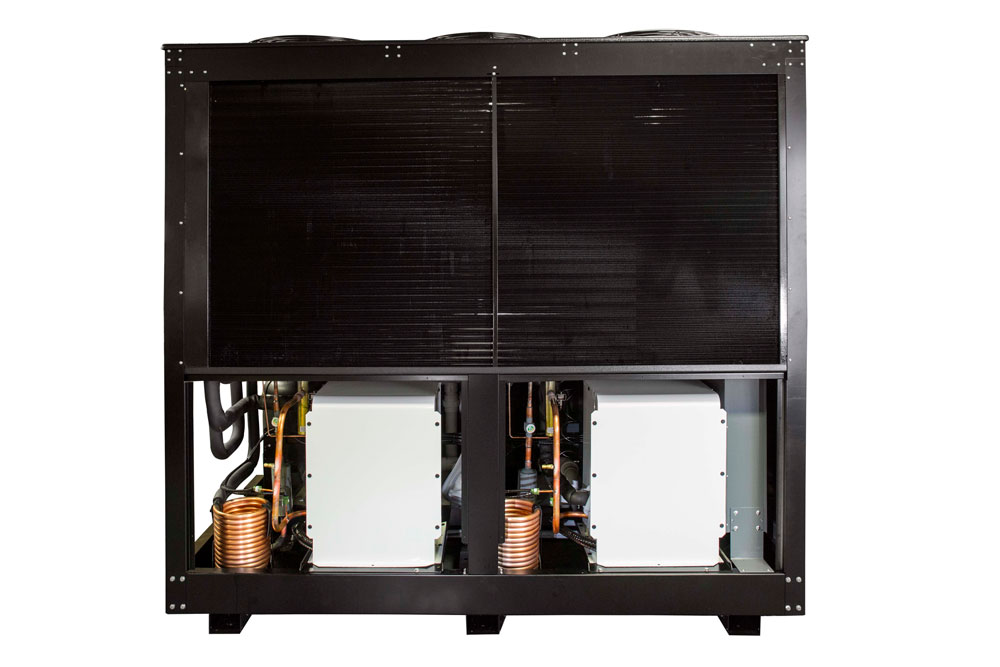

ThermoLink® Titanium Heat Exchanger
- Patented counter-flow water management system
- Heats water faster and more efficiently
- Impervious to chemical corrosion
- Durability without sacrificing performance
- Lifetime warranty
Microprocessor Controlled – with Digital Display
- Patented counter-flow water management system
- Accurate and easy to read bright blue display
- On-board self diagnostics
- Microprocessor controlled defrost cycle
ICEBREAKER® Heat & Cool
- Extends swimming season longer than any other heat pump on the market
- Continues to heat in freezing temperatures to minimize heat loss
- Cool your pool to a refreshing temperature
- Set to heat, cool or autotemp

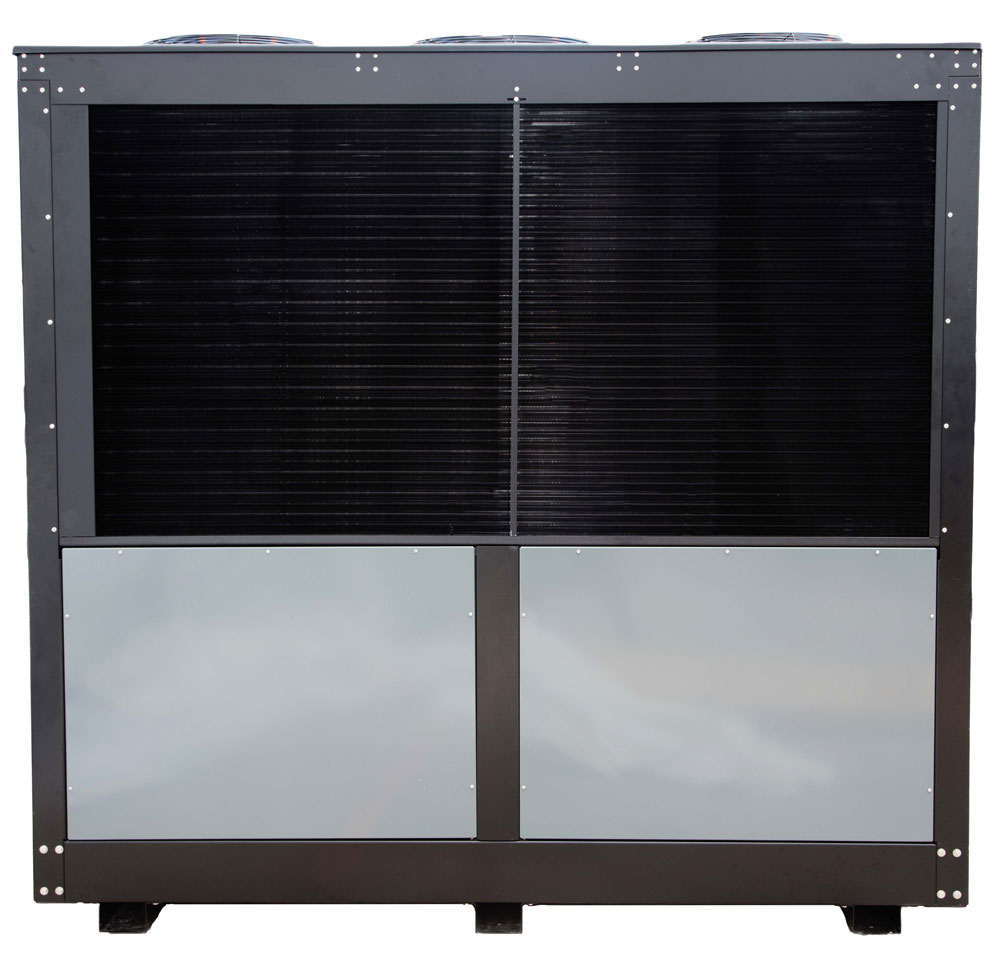

Corrosion Resistant Cabinet
- Rust resistant, heavy gauge G90 Galvaneal steel with 7 step Powder Coat process
- Polymer condensate drain system

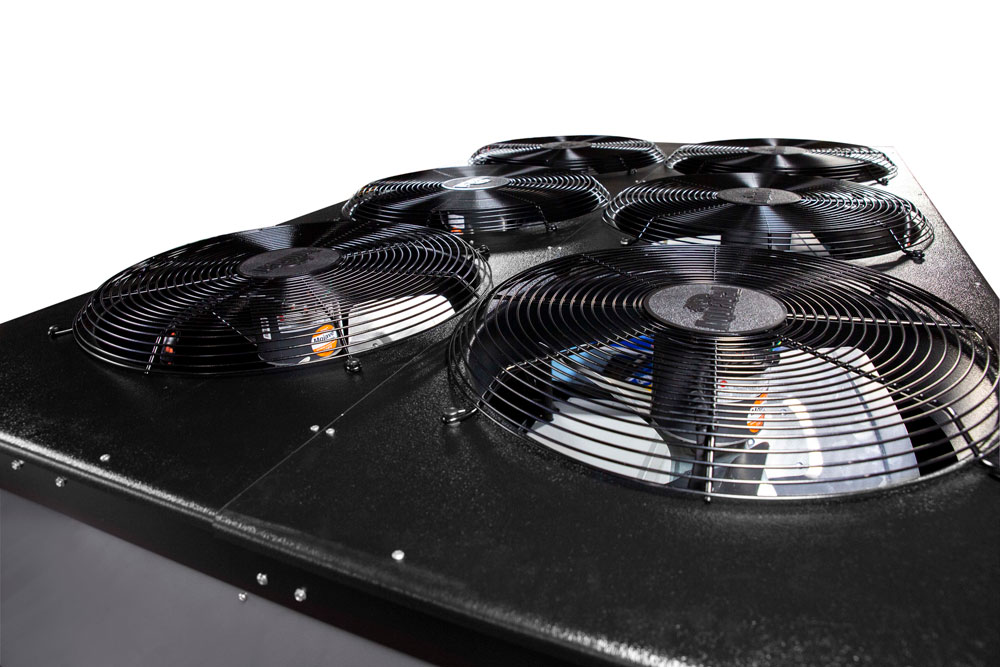

- Polymer coated fan and coil guards
Brochures & Manuals
Specs 60Hz
GBB | 60Hz – 208-230V | 60Hz – 460V |
---|---|---|
Performance – Heating @26.7°C Air/80% RH/26.7°C Water @80°F Air/80% RH/80°F Water |
||
kW Output | 154.4 | 154.4 |
BTU Output | 527,000 | 527,000 |
COP | 6.6 | 6.6 |
kW Input | 23.3 | 23.3 |
Performance – Heating @26.7°C Air/80% RH/26.7°C Water @80°F Air/80% RH/80°F Water |
||
kW Output | 91.7 | 91.7 |
BTU Output | 313,000 | 313,000 |
COP | 4.1 | 4.1 |
kW Input | 22.4 | 22.4 |
Performance – Chilling @40°C Air/26.7°C Water @100°F Air/80°F Water |
||
kW Absorption | 106.4 | 106.4 |
BTU Absorption | 363,153 | 363,153 |
kW Input | 23.8 | 23.8 |
Electrical Specs | ||
Voltage/Hz/Phase | 208-230/60Hz/3ph | 460V/60Hz/3ph |
Minimum Circuit Ampacity | 134.6 | 60.9 |
Recommended Fuse Size | 150 | 80 |
Maximum Fuse Size | 150 | 80 |
Pool Water Flow | ||
Minimum/Maximum l/min | 454/1059 | 454/1059 |
Minimum/Maximum gpm | 120/280 | 120/280 |
Pressure Drop/Pool Water @568 l/min | 0.12 bar | 0.12 bar |
Pressure Drop/Pool Water @150 gpm | 1.8 PSI | 1.8 PSI |
Pool Water Connections | 4″ U.S. | 4″ U.S. |
Refrigerant Type | R410A | R410A |
Physical Specs | ||
Weight (lbs.) | 1,540 | 1,540 |
Weight (kg) | 700 | 700 |
Length x Width x Height (in.) | 90″ x 54″ x 86″ | 90″ x 54″ x 86″ |
Length x Width x Height (cm) | 229 x 138 x 219 | 229 x 138 x 219 |
Specs 50Hz
GBB | 50Hz – 380-415V |
---|---|
Performance – Heating @26.7°C Air/80% RH/26.7°C Water @80°F Air/80% RH/80°F Water |
|
kW Output | 123.7 |
BTU Output | 422,000 |
COP | 6.8 |
kW Input | 18.1 |
Performance – Chilling @40°C Air/26.7°C Water @100°F Air/80°F Water |
|
kW Output | 73.3 |
BTU Output | 250,000 |
COP | 4.1 |
kW Input | 17.9 |
kW Absorption | 91.3 |
BTU Absorption | 311,516 |
kW Input | 21.2 |
Electrical Specs | |
Voltage/Hz/Phase | 380-415V/50Hz/3ph |
Minimum Circuit Ampacity | 68.2 |
Recommended Fuse Size | 80 |
Maximum Fuse Size | 80 |
Pool Water Flow | |
Minimum/Maximum l/min | 454/1059 |
Minimum/Maximum gpm | 120/280 |
Pressure Drop/Pool Water @568 l/min | 0.12 bar |
Pressure Drop/Pool Water @150 gpm | 1.8 PSI |
Pool Water Connections | 4″ U.S. |
Refrigerant Type | R410A |
Physical Specs | |
Weight (lbs.) | 1,540 |
Weight (kg) | 700 |
Length x Width x Height (in.) | 90″ x 54″ x 86″ |
Length x Width x Height (cm) | 229 x 138 x 219 |
