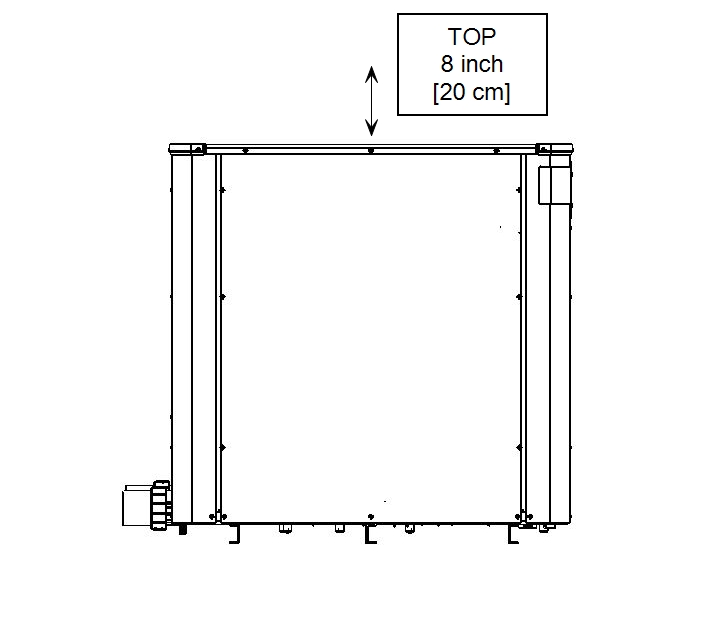

Clearances

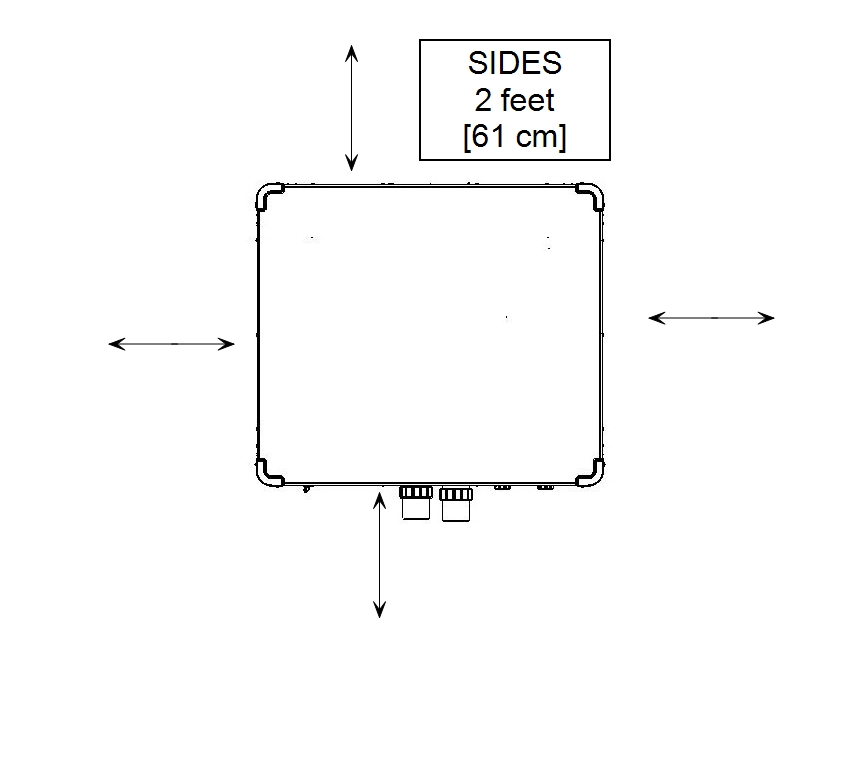

• Locate the heat pump at least 24 inches (61 cm) away from the wall. And provide a minimum 24 inches (61 cm) between heat pumps. This will allow for rear plumbing access and electrical connections.
• Do not stack heat pumps on top of each other. Use approved racks when stacking equipment.
• Only rack equipment two units high.
• Equipment rack must meet all requirements of authorities having code-related jurisdiction.
• Avoid placing objects near or on top of the heat pump. This includes shrubbery and lawn furniture. These objects will hinder maintenance access.
• Heat pumps must not be installed indoors or in enclosed areas.
