Plumbing Diagrams

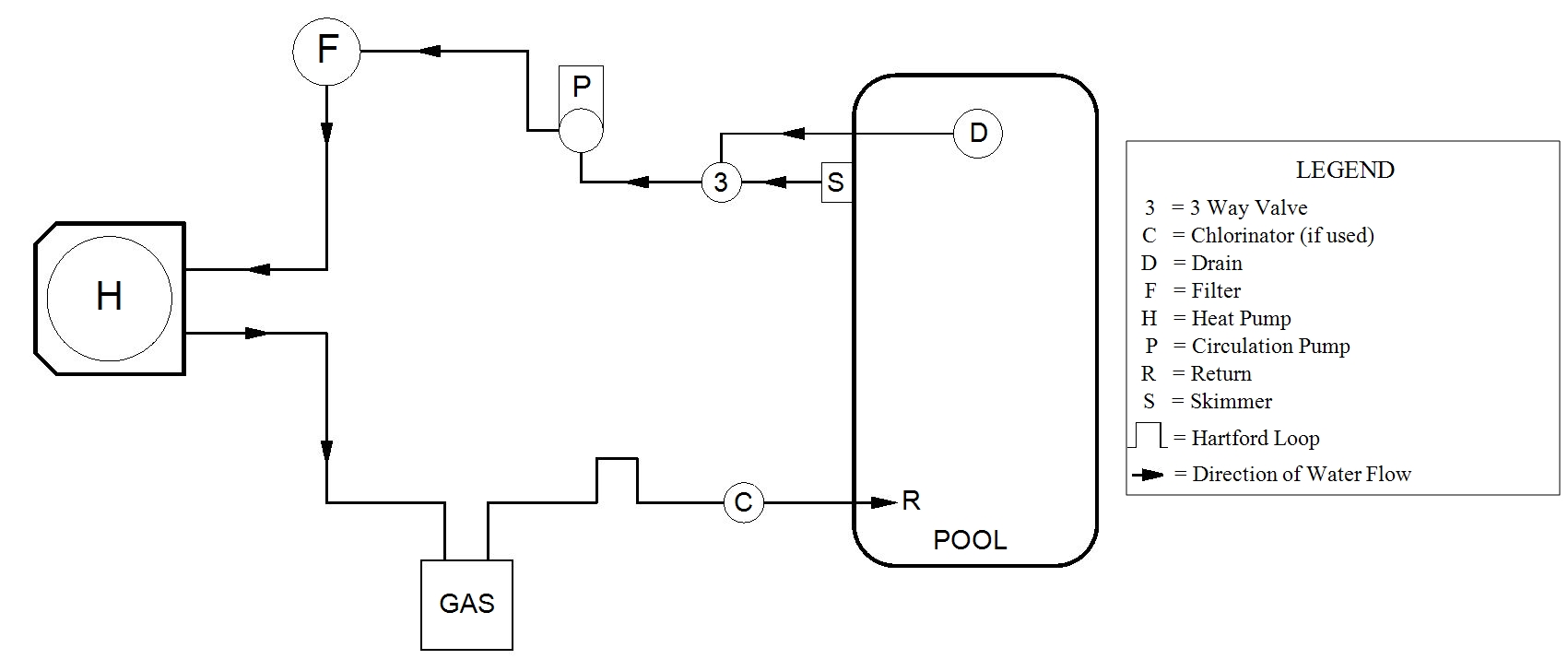

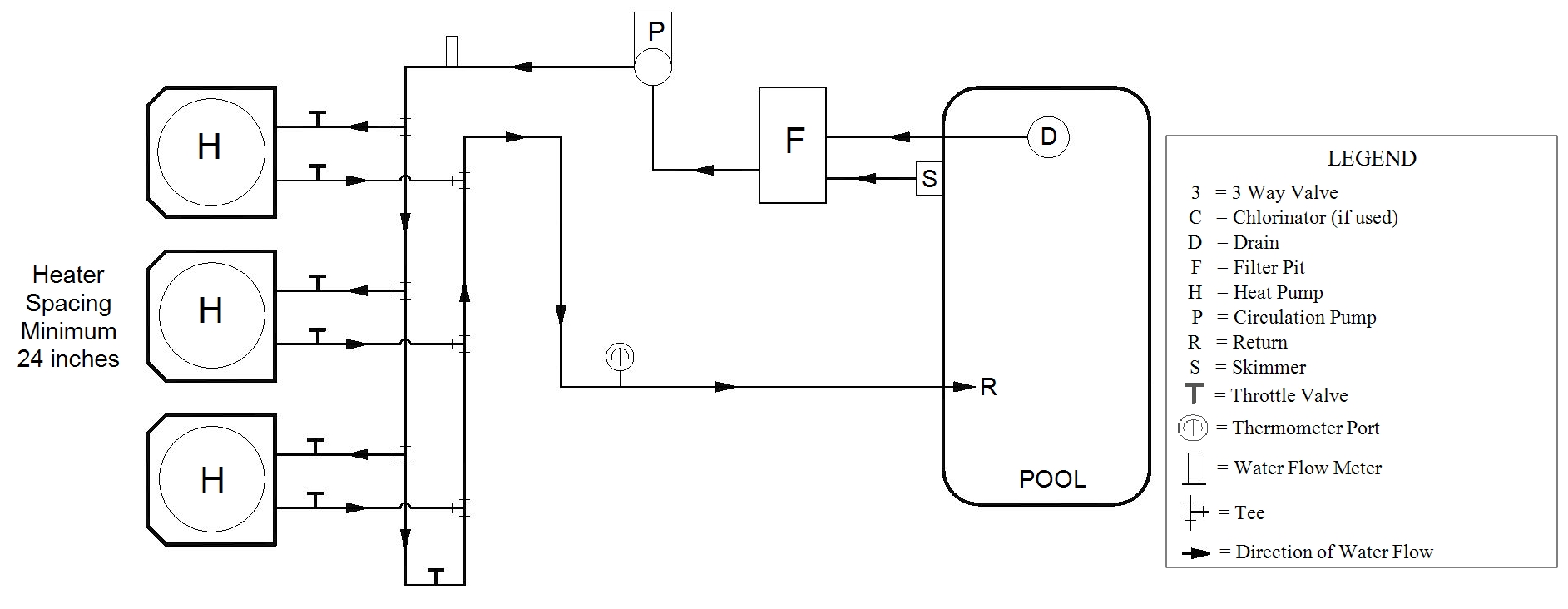

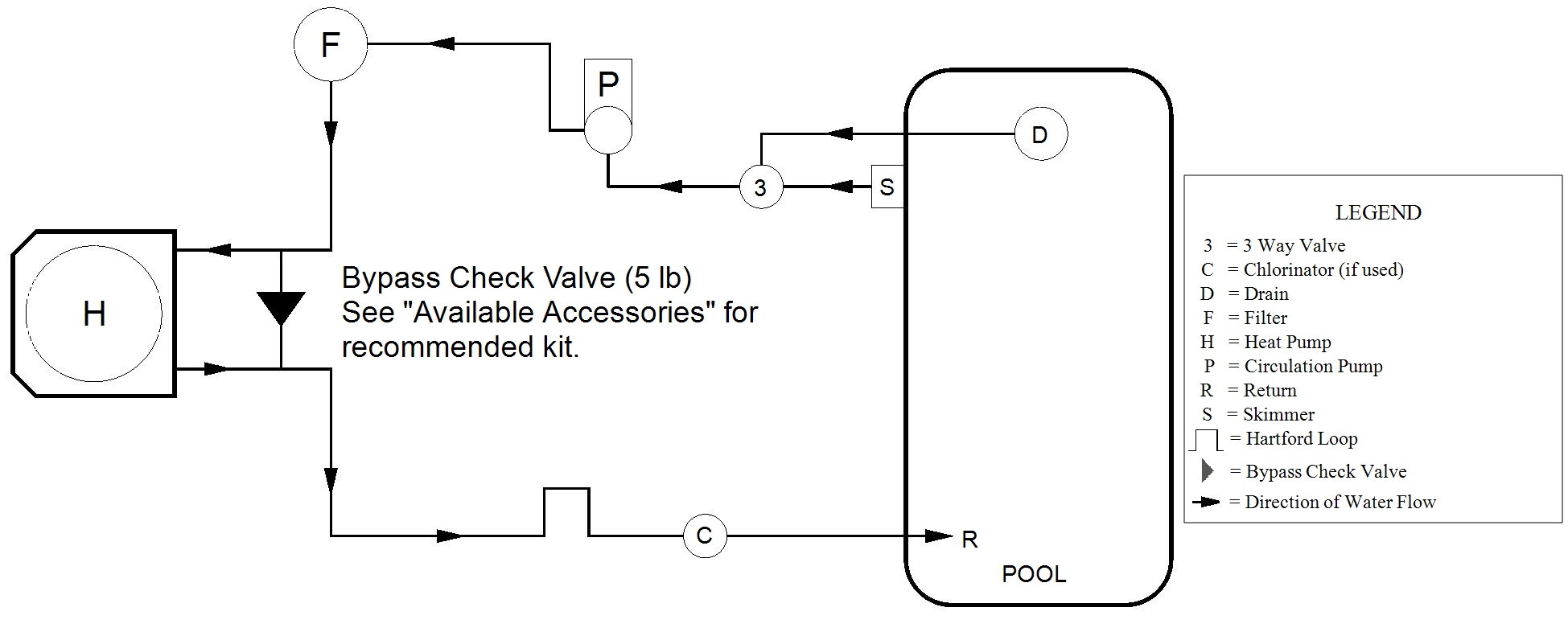

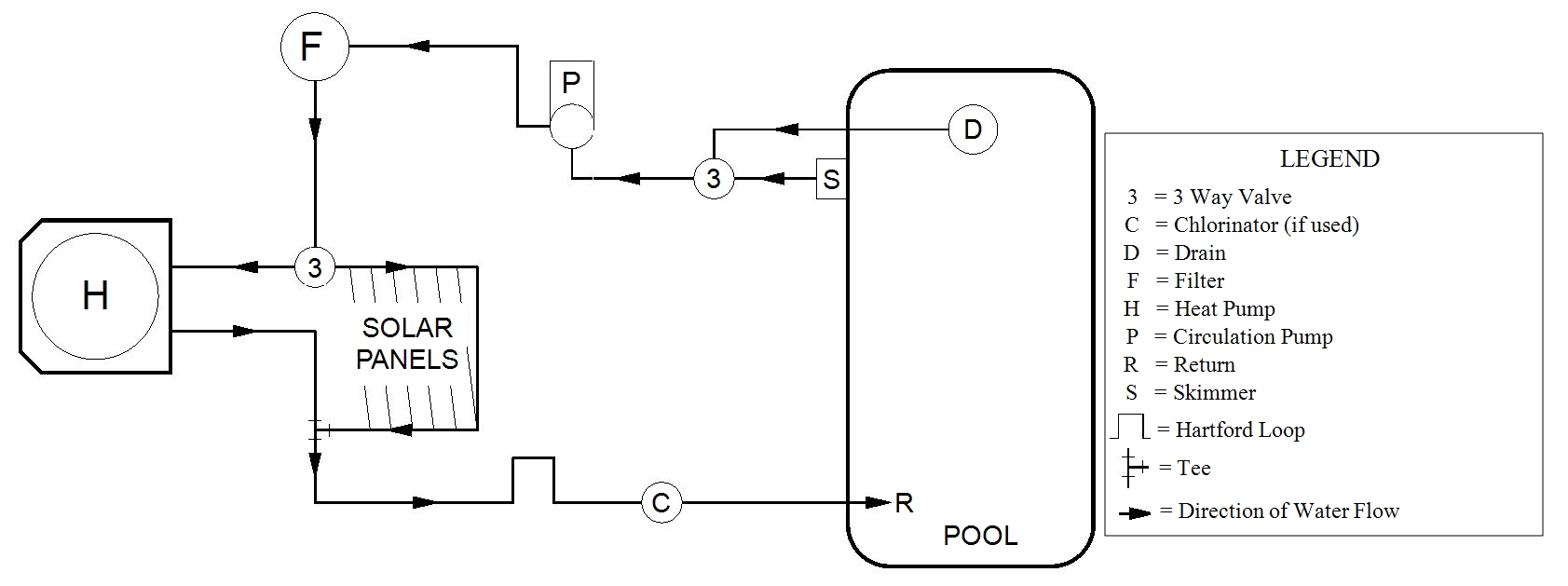

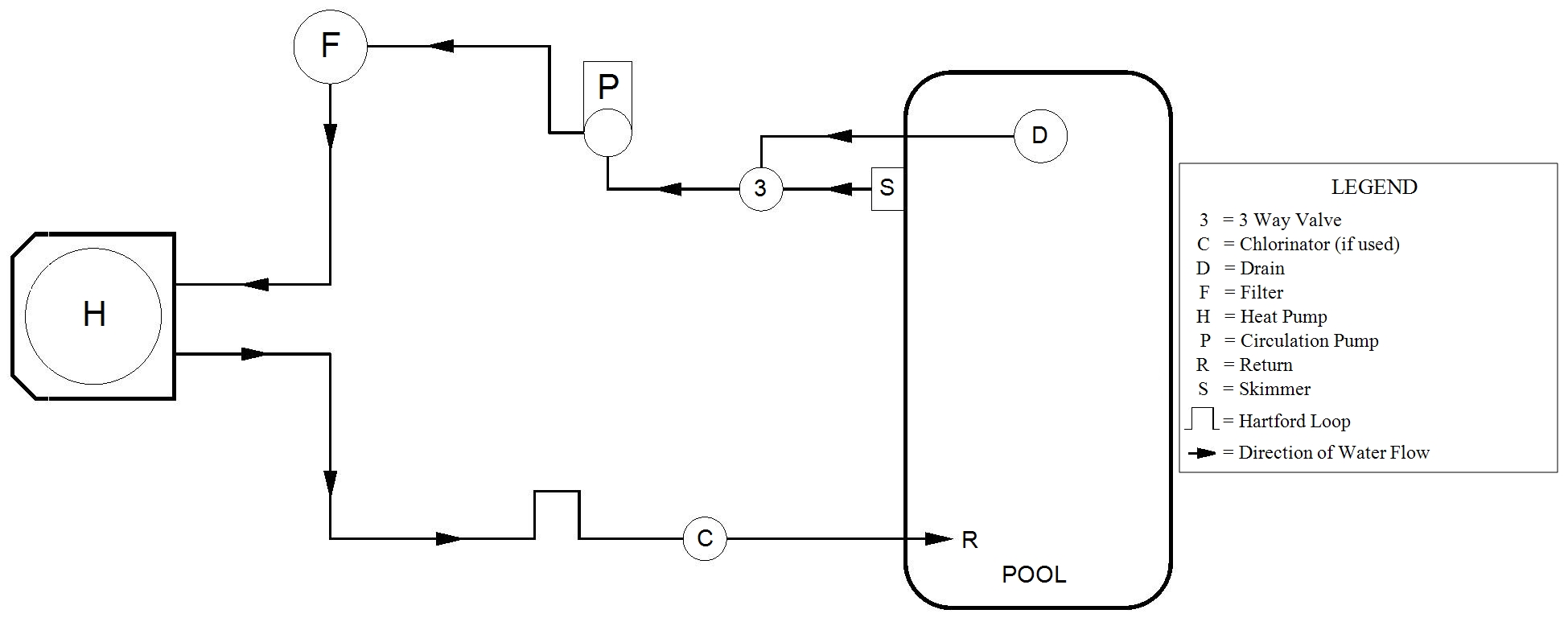

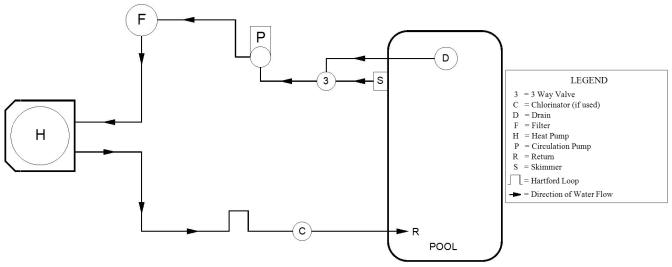

Plumbing diagrams are provided in this section as a planning guide to the sequence of equipment, valves, and fittings.

• The basic plumbing configurations for typical installations are shown.
• If the installation does not closely follow any of the supplied plumbing diagrams, AquaCal^® Technical Support is available for installation advice and guidance.
• Confirm water provided to chiller is clean and filtered.
