Document LTM0934 rev 1.03b



Plumbing Diagrams

Plumbing diagrams are provided in this section as a planning guide to the sequence of equipment, valves, and fittings.

  • The basic plumbing configurations for typical installations are shown.
  • If the installation does not closely follow any of the supplied plumbing diagrams, AquaCal® Technical Support is available for installation advice and guidance.
  • Confirm water provided to heat pump is clean and filtered.

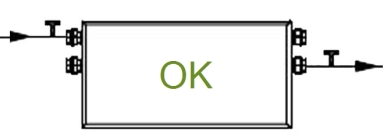

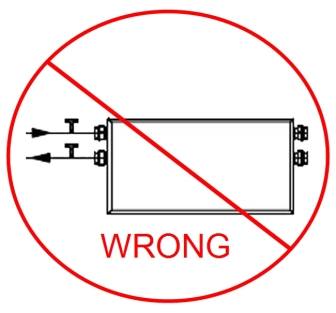

The Heat Pump MUST be plumbed so that the water inlet and outlet are on opposite sides.

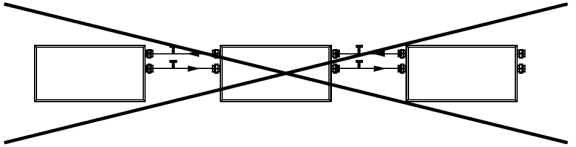

DO NOT PLUMB UNITS IN SERIES AS SHOWN HERE





Good Plumbing Examples:

Great Big Bopper®

Single Unit - Example 1

Great Big Bopper®

Single Unit - Example 2



While multiple Great Big Bopper®heat pumps are shown in the following diagrams, it is not a requirement. Sizing requirements will determine the number of required heat pumps.



Great Big Bopper® Multiple Units - Z-Flow Plumbing Design



Great Big Bopper® Multiple Units - U-Flow Plumbing Design
