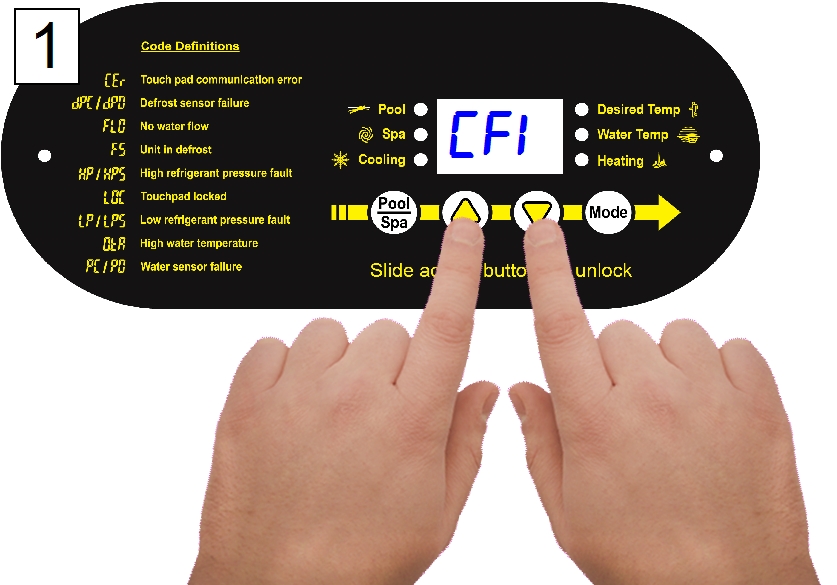

Press "Up" and "Down" buttons simultaneously until CF1 appears.

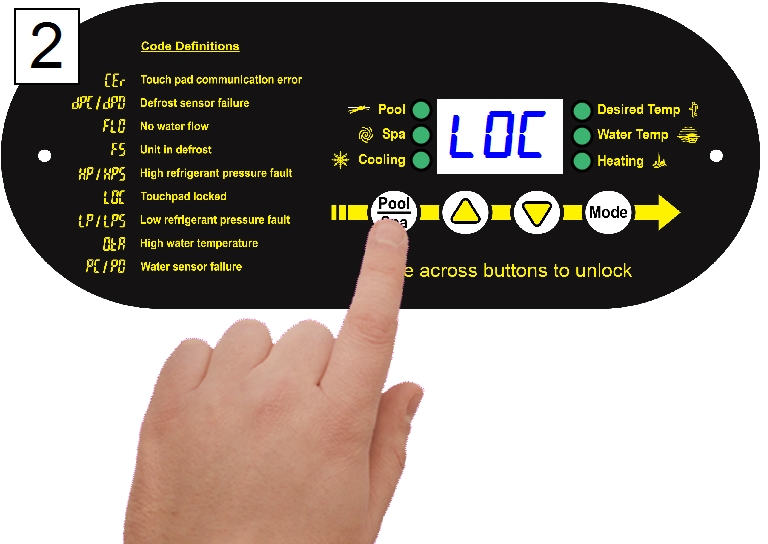

Press "Pool / Spa" button until LOC is displayed.

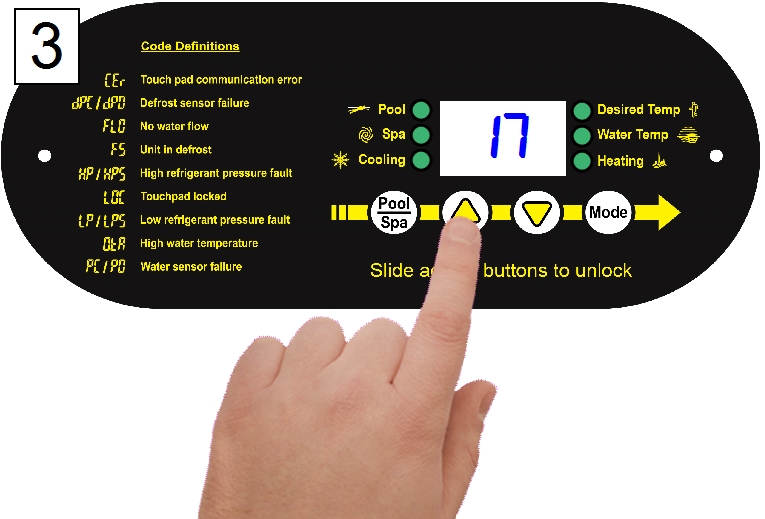

Press "Up" or "Down" to passcode. Default is "17".

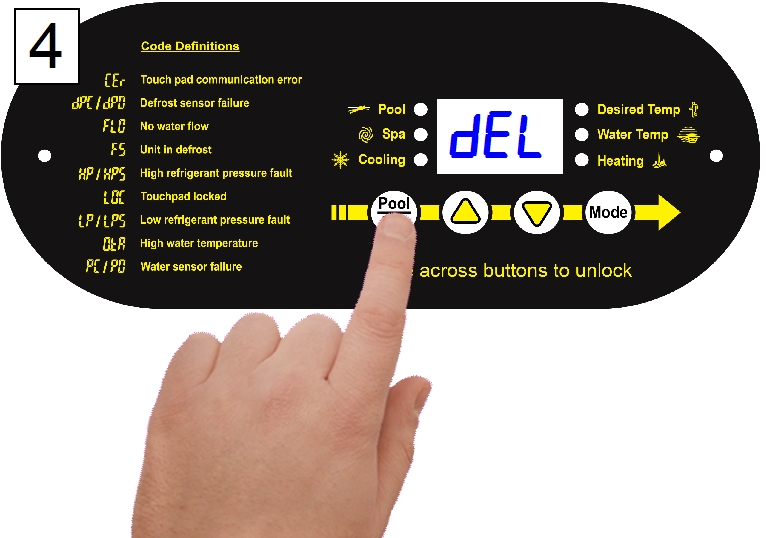

Press "Pool / Spa" button once.

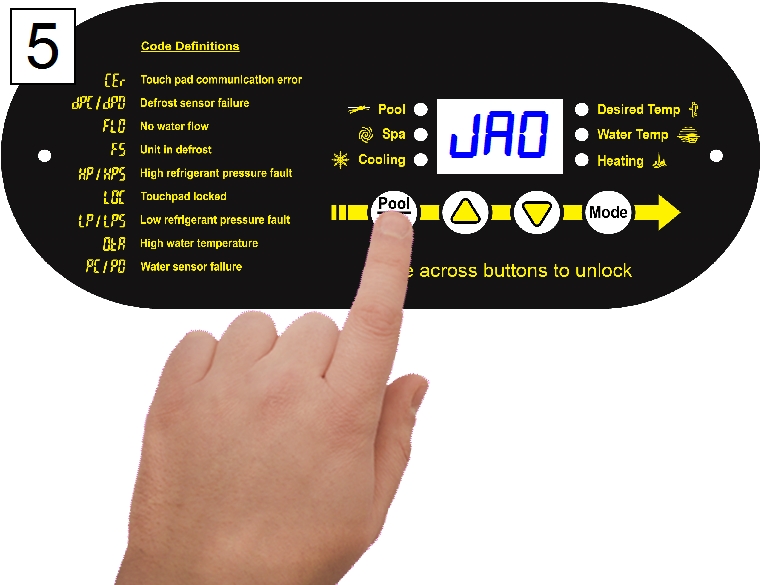

Press the "Pool / Spa" button until JAO is displayed.

Press "Up" or "Down" button.

• "0" - none
• "2" - two-wire
• "3" - three-wire
