Adjusting Solar Heating Differential
In general, the water flowing through the solar collectors is used to heat the pool / spa water. The unit will call for heating when the solar setpoint is higher than the existing pool / spa water temperature.
- Heating starts when the roof temperature is 6° F greater than the water temperature of the pool or spa.
- Heating stops when the roof temperature is within 2° F of the water temperature of the pool or spa.
- Please note - the Heat Pump solar settings must be as follows:
- The "SOLAR CONTROL MODE" is set to "ECO" mode. See "Solar Control Mode".
- The "SOLAR HEAT / COOL MODE" is set to "HEAT"

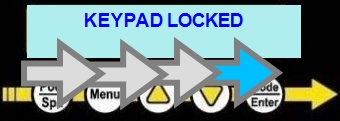

IF UNIT IS ASLEEP,
SWIPE TO WAKE UP
A
PRESS MENU
BUTTON
B

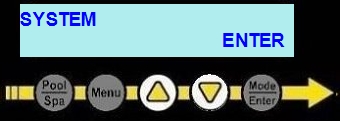

USE ARROWS TO
"SYSTEM"
C

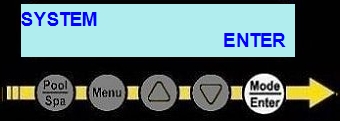

PRESS "ENTER"
D

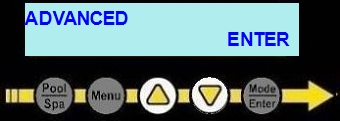

USE ARROWS TO
"ADVANCED"
E

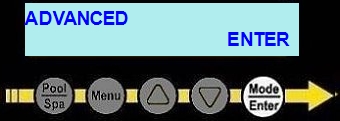

PRESS "ENTER"
F

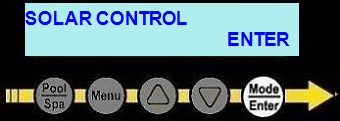

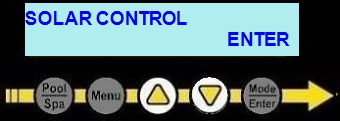

USE ARROWS TO
"SOLAR CONTROL"
G
PRESS "ENTER"
H

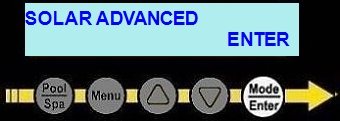

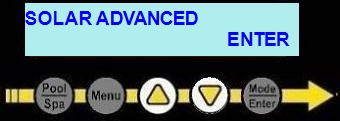

USE ARROWS TO
"SOLAR ADVANCED"
I
PRESS "ENTER"
1

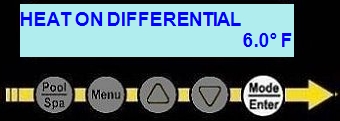

USE ARROWS TO "HEAT
ON DIFFERENTIAL"
2
ENTER TO EDIT
3

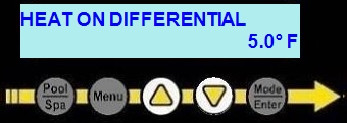

USE ARROWS TO
CHANGE
4

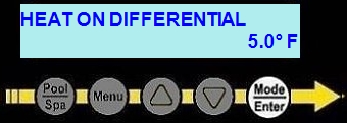

ENTER TO SAVE
5

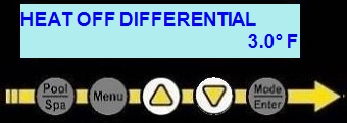

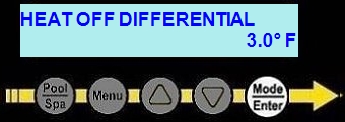

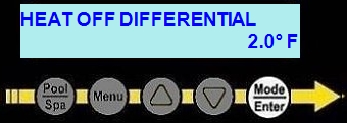

ARROWS TO "HEAT
OFF DIFFERENTIAL"
6
ENTER TO EDIT
7
USE ARROWS TO
CHANGE
8
ENTER TO SAVE
MENU TO EXIT, PRESS
& HOLD TO STATUS
