Kit Contents
| Quantity | Part # | Description |
|---|---|---|
| 1 | ECP0501 | "HP11" Control board |
| 1 | ECA0503 | "HP11" Five Push Button Display Board Assembly |
| 9 | ECA0360 | Wire Connector / Adapters (pig tails) 1 as spare |
| 1 | ECP0395 | Defrost Temperature Sensor |

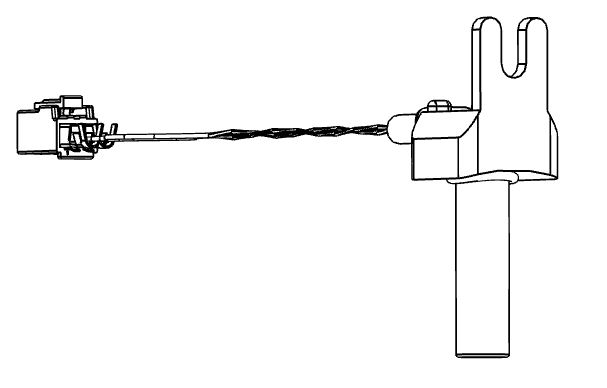

| 2 | ECP0394 | Water Temperature Sensors |
| 2 | 9185 | Hose Clamps |
| 4 | 9025 | Screws, #6 x 5/8 |
| 1 | GKP0007 | Insulation |
| 8 | 8011 | Tie Wraps |
Please note
If the display or power control board will not fit, the equipment you are upgrading ("legacy equipment") may have a mounting plate for the retrofit (not included). For further assistance, please contact AquaCal. .

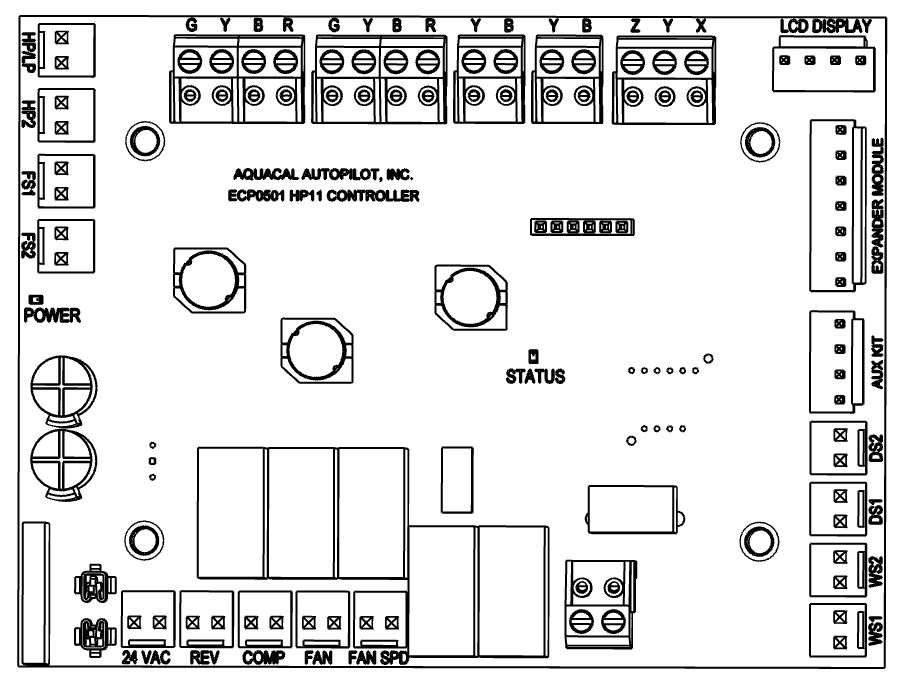

ECP0501 Control Board ("HP11")
Figure 1
ECA0503 Five Push Button Display ("HP11")
Figure 2

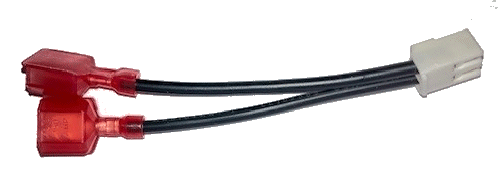

ECA0360 Wire Connector / Adapters (pig tails)
Figure 3

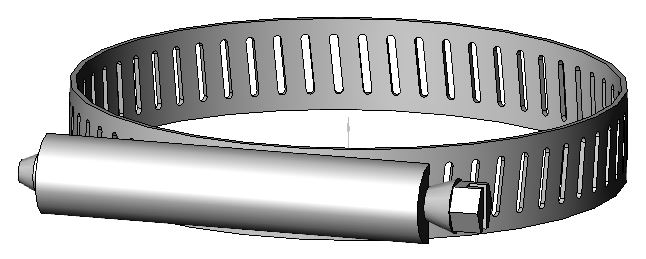

9185 Hose Clamp
.jpg)
Figure 4

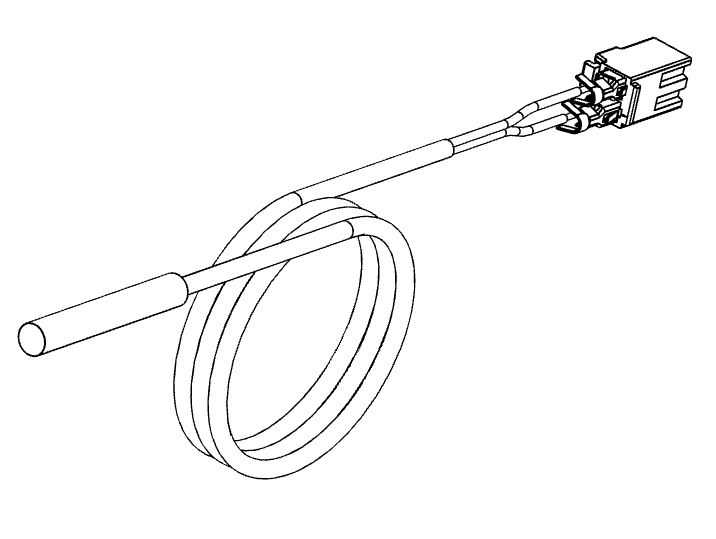

ECP0395 Defrost Temperature Sensor
.jpg)
Figure 5
.jpg)
