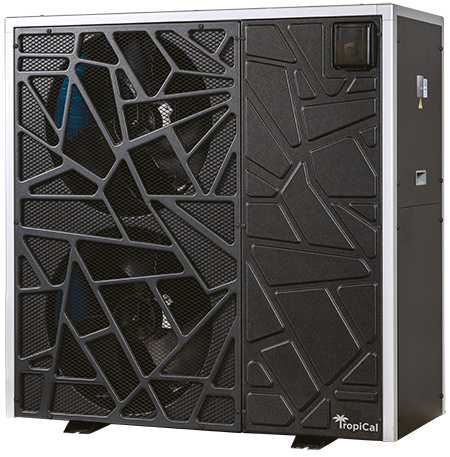

Experience the next generation of pool heating with the New TropiCal Heat Pump, AquaCal’s latest advancement in technology. Equipped with full inverter technology, the TropiCal adjusts its performance to maintain the perfect pool temperature while minimizing energy use and noise.
Whether it’s rapid heating, energy efficiency, or a balanced solution you’re after, the TropiCal delivers with three smart operating modes designed to meet a variety of needs.
Manage your heat pump effortlessly with the intuitive 4-inch color touch screen, or remotely via our secure PoolSync mobile app.
What’s Inverter technology?
Inverter technology is like cruise control for your pool’s heating system. Instead of the heat pump constantly turning on and off (like older models), it smoothly adjusts to maintain the perfect temperature. This means your pool stays at the ideal temperature, using less energy and making less noise.
Now you can control your heat pump right through your smartphone. Adjust your temperature setting in the PoolSync app.
AHRI’s globally recognized and industry respected heat pump pool heaters certification program provides outstanding value to equipment and component manufacturers, customers, and government regulators. AHRI Certified® products are subject to rigorous and continuous testing by a third-party laboratory under contract to AHRI. Only products certified by AHRI are listed in AHRI’s Directory of Certified Product Performance, a real-time database at web page. More information can be found online on the heat pump pool heaters Certification Program (web page), and the heat pump pool heaters contractors (web page).
California residents – Click here for Proposition 65 warning
Brochures & Manuals
Specs 60Hz
| T130 | ||
|---|---|---|
| BTU | 80/80/80 Boost Mode | 123,000 |
| 80/80/63 Boost Mode | 114,000 | |
| 80/50/63 Boost Mode | 65,000 | |
| kW Output | 36.1 – 19.1 | |
| COP | 80/80/80 Boost Mode | 5.7 |
| 80/80/63 Boost Mode | 5.4 | |
| 80/50/63 Boost Mode | 4.2 | |
| COP | 80/80/80 Eco Mode | 10.8 |
| Refrigerant | R32 | |
| Electrical | Heat or Heat and Cool | H&C |
| kW Input | 6.3 | |
| Voltage/Hz/Phase | ||
| Min Circuit Ampacity | 27.4 | |
| Max Fuse Size | 40 | |
| Water Flow | Min/Max (gpm) | 30/70 |
| Exceeding the maximum flow rate required a bypass. Damage due to execssive water flow will void warranty | ||
| Physical | Weight Lbs | 271 |
| Length x Width x Height (in) | 46x21x47 | |
| Shipping | Weight Lbs | 315 |
| Length x Width x Height (in) | 47x22x54 |
Model Comparison
| T70 | T100 | T130 | ||
|---|---|---|---|---|
| BTU | 80/80/80 Boost Mode | 63,000 | 108,000 | 123,000 |
| 80/80/63 Boost Mode | 60,000 | 104,000 | 114,000 | |
| 80/50/63 Boost Mode | 26,500 | 47,500 | 65,000 | |
| kW Output | 18.5 – 7.8 | 31.7 – 13.9 | 36.1 – 19.1 | |
| COP | 80/80/80 Boost Mode | 5.4 | 5 | 5.7 |
| 80/80/63 Boost Mode | 5.2 | 4.8 | 5.4 | |
| 80/50/63 Boost Mode | 4 | 4.2 | 4.2 | |
| COP | 80/80/80 Eco Mode | 10.8 | 10.1 | 10.8 |
| Refrigerant | R32 | R32 | R32 | |
| Electrical | Heat or Heat and Cool | H&C | H&C | H&C |
| kW Input | 3.4 | 6.3 | 6.3 | |
| Voltage/Hz/Phase | 230V/60Hz/1 | |||
| Min Circuit Ampacity | 13.1 | 27.3 | 27.4 | |
| Max Fuse Size | 20 | 40 | 40 | |
| Water Flow | Min/Max (gpm) | 20/60 | 30/70 | 30/70 |
| Exceeding the maximum flow rate required a bypass. Damage due to execssive water flow will void warranty | ||||
| Physical | Weight Lbs | 139 | 207 | 271 |
| Length x Width x Height (in) | 43x19x28 | 47x21x35 | 46x21x47 | |
| Shipping | Weight Lbs | 158 | 245 | 315 |
| Length x Width x Height (in) | 44x20x35 | 48x22x42 | 47x22x54 |
