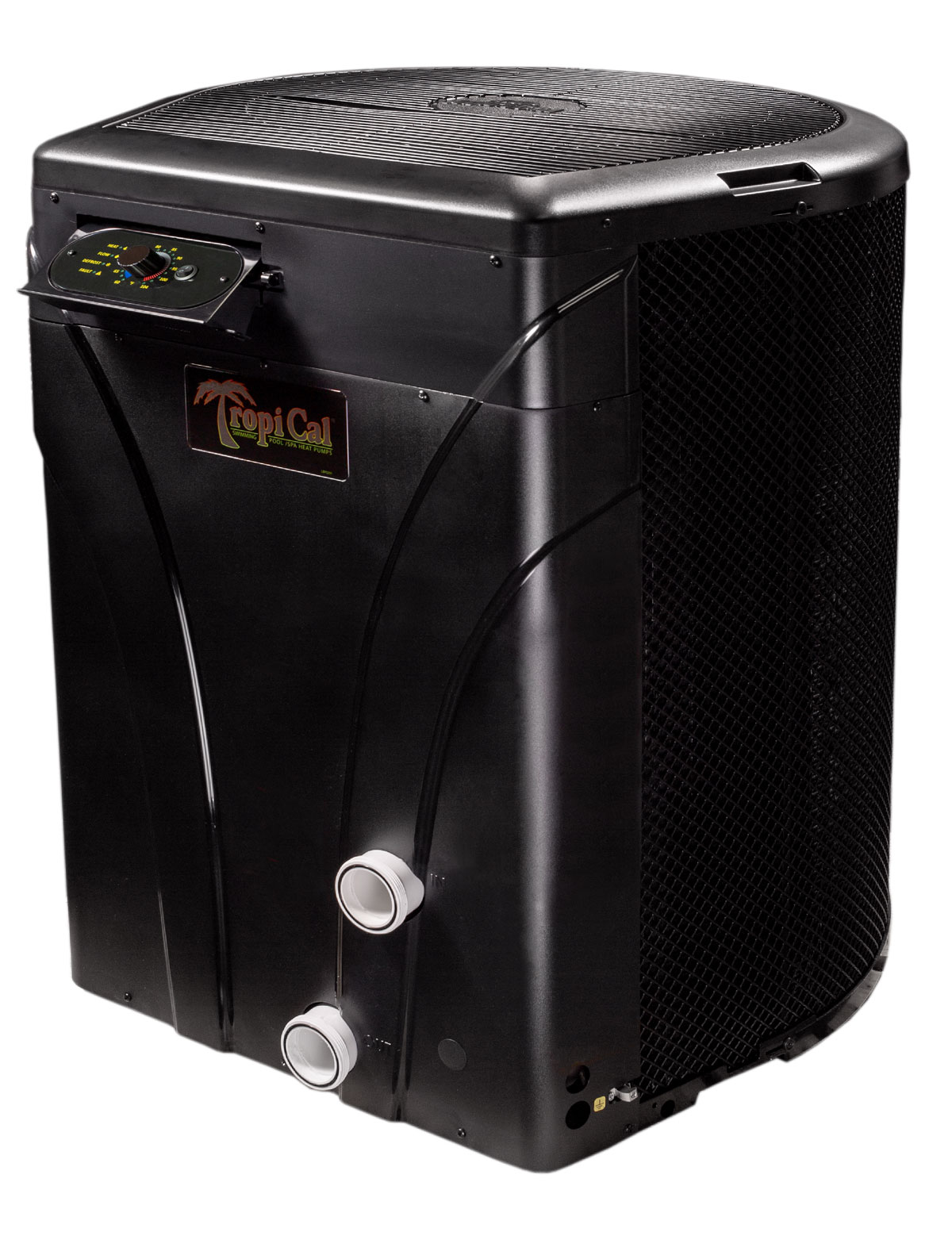

The TropiCal® is an economy heat pump designed to fit any budget.

  • Optimum heat output in a small footprint
  • Large surface and corrosion resistant evaporator
  • Vinyl coated fan grill
  • Microprocessor controlled automatic defrost allows operation down to the mid to lower 40s
  • High performance titanium heat exchanger (patented ThermoLink® heat exchanger in the T115 and T135 models)
Contact AquaCal for your Sizing Needs

ahri_cert_product   CSA logo   CE logo   ETL logo

pdf iconInstallation Manual
pdf iconOperation Manual
pdf iconBrochure - 60Hz
pdf iconBrochure - 60Hz (Spnanish)
pdf iconBrochure - 50Hz

Side by Side Comparison - 60Hz

60HzT55T75T90T115T135
BTUs
(water temp/ambient air/relative humidity)
80/80/8051,00072,00096,000112,000132,000
80/80/6347,50067,00090,000106,000125,000
80/50/6330,00046,00065,00074,00084,000
Coefficient of Performance
(water temp/ambient air/relative humidity)
80/80/805.65.46.05.65.7
80/80/635.55.35.85.45.6
80/50/634.04.04.24.04.0
RefrigerantR410AR410AR410AR410AR410A
Heat ExchangerTube in TubeTube in TubeThermoLink®ThermoLink®ThermoLink®
Electrical
kw Input2.73.94.75.96.8
Voltage/Hz/Phase208-230/60/1208-230/60/1208-230/60/1208-230/60/1208-230/60/1
Minimum Circuit Ampacity19.426.840.035.443.3
Maximum Fuse Size3045606060
Water Flow

*A Heater Bypass Kit is required when flow rates exceed the maximum

Minimum/Maximum (gpm)20/4520/4530/7030/7030/70

*A Heater Bypass Kit is required when flow rates exceed the maximum

Physical
Weight (lbs)180200255259287
Size (Length x Width x Height) (in).36" x 25"x 28"36" x 25" x 32"38" x 29" x 40"38" x 29" x 40"38" x 29" x 44"
Shipping
Weight (lbs)220240305309337
Size (Length x Width x Height) (in).38" x 26"x 33"38" x 26" x 33"40" x 30" x 45"40" x 30" x 45"40" x 30" x 49"
Decibels (dB)6565656565

Rated in accordance with ARI standard 1160 water temp/ambient air/relative humidity



Side by Side - 50Hz – Hot Gas Defrost Models

50 HzT35RT55RT75RT115RT135R
Efficiency
kW Output10.612.917.927.331.7
BTU Output36,00044,00061,00093,000108,000
Coefficient of Performance6.26.26.66.06.6
kW Input1.72.12.74.54.8
Electrical
Heat or Heat & CoolH & CH & CH & CH & CH & C
Voltage/Hz/Phase
50Hz: H-220-240/50/1 D-380-415/50/3
HH&DH&DH&DD
Maximum Fuse SizeH-20H-25

D-10
H-30

D-15
H-60

D-25
D-25
Maximum Fuse SizeH-20H-25

D-10
H-30

D-15
H-60

D-25
D-25
Minimum Circuit AmpacityH-12.2H-15.3

D-6.6
H-21.3

D-10.9
H-38.6

D-25.2
D-16.7
RefrigerantR410AR410AR410AR410AR410A
Heat ExchangerTube in TubeTube in TubeTube in TubeThermoLink®ThermoLink®
Water Flow
Min./Max. Water Flow (m3/h)4.5/10.24.5/10.24.5/10.26.8/15.96.8/15.9
Min./Max. Water Flow (gpm)20/4520/4520/4530/7030/70
Physical
Weight (kg)828291114120
Weight (lb)180180200250264
Length x Width x Height (cm)92 x 64 x 7292 x 64 x 7292 x 64 x 8297 x 74 x 10297 x 74 x 112
Length x Width x Height (in)36" x 25" x 28"36" x 25" x 28"36" x 25" x 32"38" x 29" x 40"38" x 29" x 44"
Shipping
Weight (kg)100100109136142
Weight (lbs)220220240300314
Length x Width x Height (cm)97 x 66 x 8497 x 66 x 8497 x 66 x 94102 x 77 x 115102 x 77 x 125
Length x Width x Height (in)38" x 26" x 33"38" x 26" x 33"38" x 26" x 37"40" x 30" x 45"40" x 30" x 49"
pdf iconWarranty Information
pdf iconInternational Warranty Information
pdf iconCanada Warranty Information
pdf iconAustralia Warranty Information
pdf iconNew Zealand Warranty Information
pdf iconWarranty Registration
